PHP SPX Profiling

PHP SPX is a simple, free and open source profiler. It covers both FPM and CLI requests, and provides a built-in UI to visualise the generated reports. Of which a demo can be seen here.

For more information, please see the PHP SPX Github Repository.

Configuration

To enable PHP SPX in your project environment, add to your .env file:

WARDEN_PHP_SPX=1

Note

When disabling SPX, you may be presented with a 502 bad gateway when the environment is next restarted, or the SPX container is removed.

This is caused due to the SPX cookies still being set in your browser. There is a helper tool to aid in removing these on the 502 page, or you can remove them manually through developer tools.

Usage

CLI

Running the warden spx command, will place you within a PHP-SPX instrumented terminal. Where any PHP commands you run will be profiled.

You should see a SPX report printed after the command finishes. And there will also be a corresponding report within the control panel.

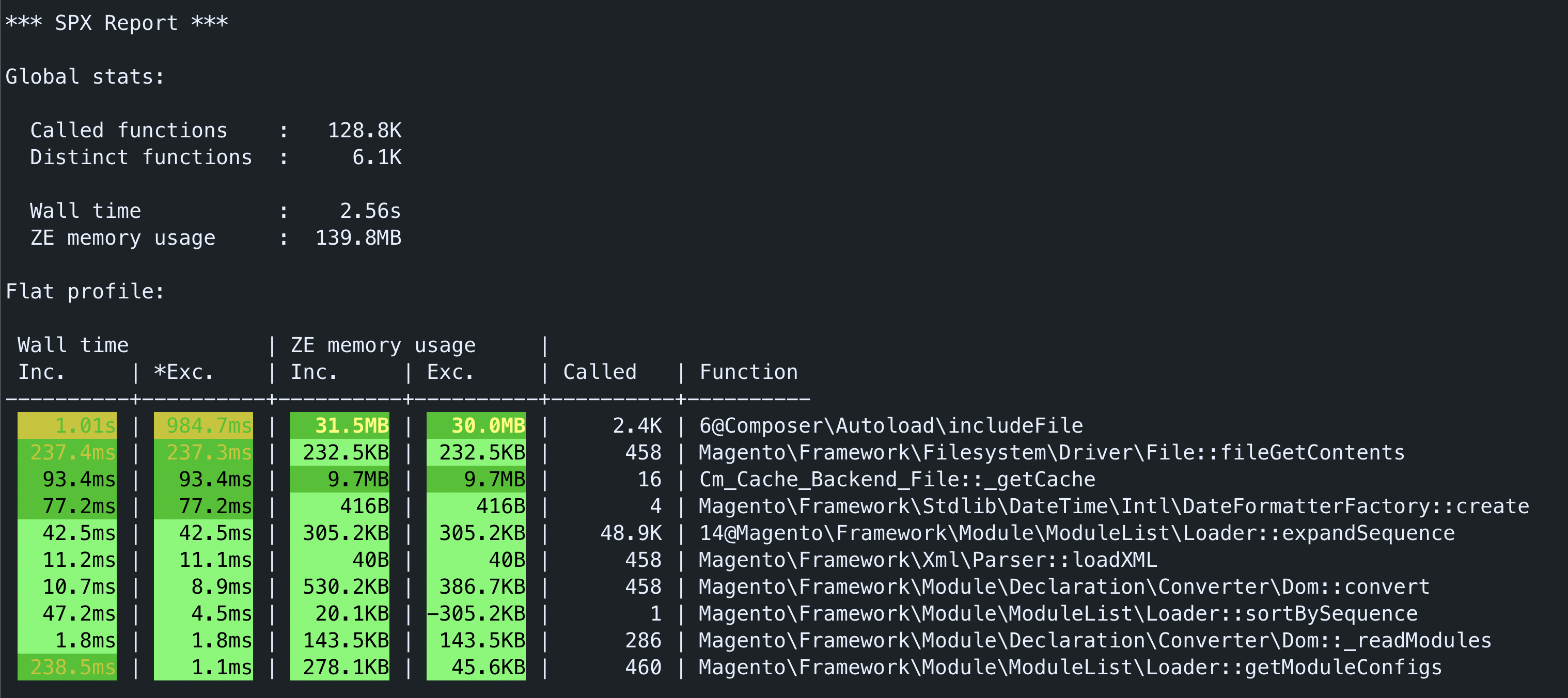

Example CLI Report generated with PHP SPX

Web

Once an environment is started with the WARDEN_PHP_SPX=1 the SPX control panel will be available.

You can start profiling requests, either by enabling the Enabled checkbox within the Control Panel. Or by setting the SPX_ENABLED browser cookie to a value of 1

Example Web Report generated with PHP SPX

Control Panel / Viewer

To view the reports generated by PHP SPX, append ?SPX_UI_URI=/&SPX_KEY=warden to the end of your environment url (e.g https://app.magento2.test/?SPX_UI_URI=/&SPX_KEY=warden).

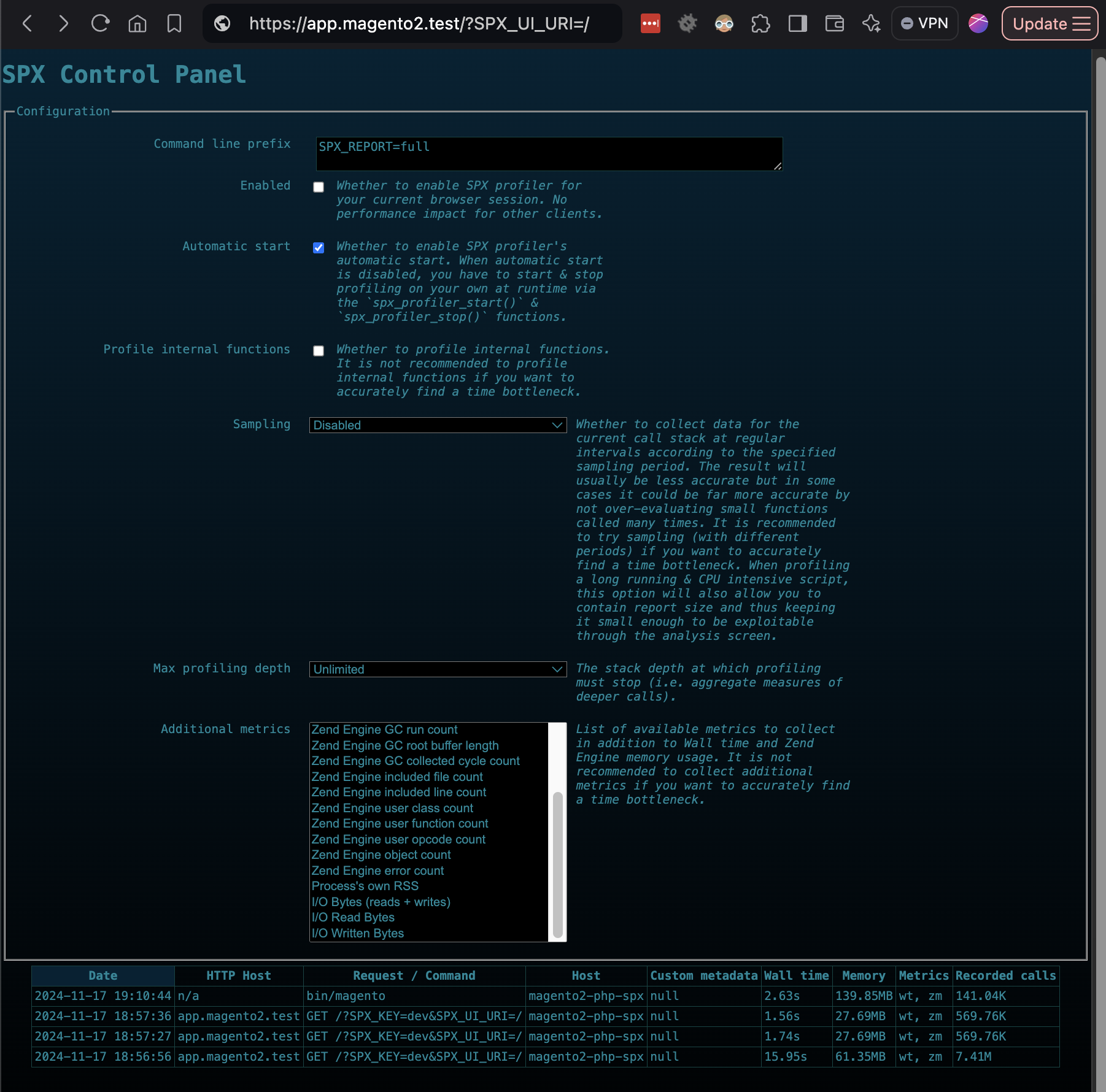

Example PHP SPX Control Panel

Troubleshooting

Control Panel not accessible

  1. Check that WARDEN_PHP_SPX=1 is enabled within your .env file

  2. Check that the SPX container is running warden env ps php-spx

  3. Make sure you specify the SPX_KEY query parameter with the value of warden when visiting the dashboard for the first time.

  4. Make sure you do not have XDebug cookies or arguments set. The Debug container takes priority over SPX.

  5. Check the x-backend response header, to ensure the request is correctly being routed to the SPX container.

502 Bad Gateway when disabling SPX

This is expected behavior when disabling SPX, as it does not automatically clean your cookies.

The 502 bad gateway page, has a helper tool that will help you clear the relevant SPX cookies. Or you can manually remove these from within dev tools, and refresh the page.
